Hyundai Accent: High mounted stop light bulb replacement

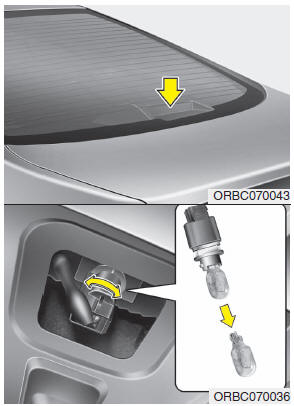

4 Door
1. Open the trunk lid.
2. Remove the socket by turning it counterclockwise.
3. Replace the bulb from the socket.
4. Install the socket by turning it clockwise.
5 Door
If the light is not operating, have the vehicle checked by an authorized HYUNDAI dealer.
