Hyundai Accent: Interior B ( 4Door )

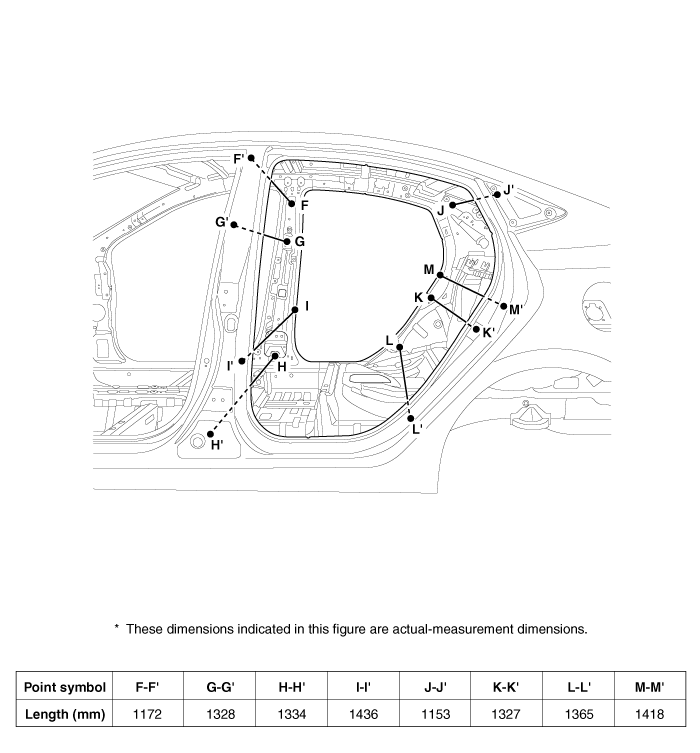

Hyundai Accent RB (2010-2018) Service Manual / Body (Interior and Exterior) / Body Dimensions / Interior. Body Repair / Interior B ( 4Door )
|
|
|
|
|
Seatbelt height adjust upper mounting hole (Ø15) |
Seatbelt height adjust lower mounting hole (Ø15) |
Front seatbelt retractor mounting hole (Ø12) |
|
|
|
|
|
Rear door checker mounting hole (Ø13) |
Quarter inner panel tooling hole (Ø8.5) |
Quarter inner panel tooling hole (Ø18) |
|
|
|
|
|
Wheel house inner trim mounting hole (Ø10) |
Rear door striker mounting hole (Ø13) |
|
