Hyundai Accent: Oil Pump. Components and Components
Location
Hyundai Accent RB (2010-2018) Service Manual / Engine Mechanical System / Lubrication System / Oil Pump. Components and Components
Location

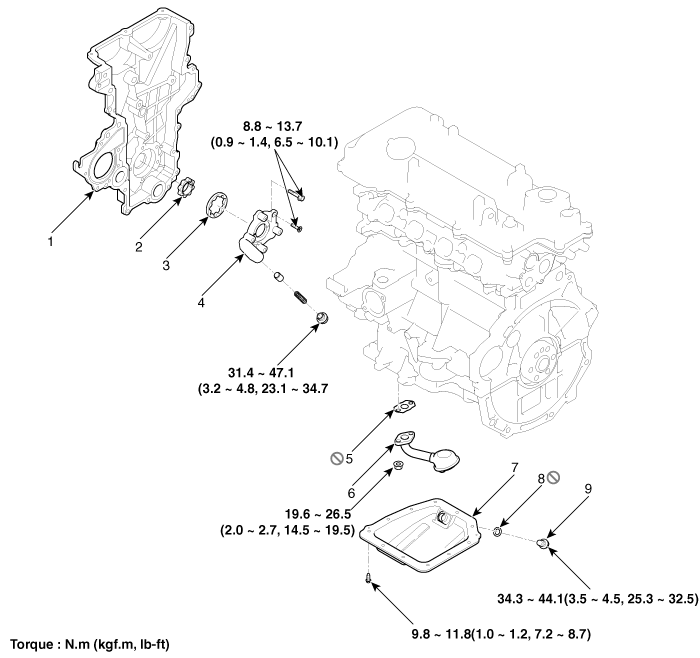

Components
|
1. Timing chain cover 2. Inner roter 3. Outer roter 4. Pump cover 5. Gasket |
6. Oil screen 7. Oil pan 8. Drain plug gasket 9. Oil drain plug |
